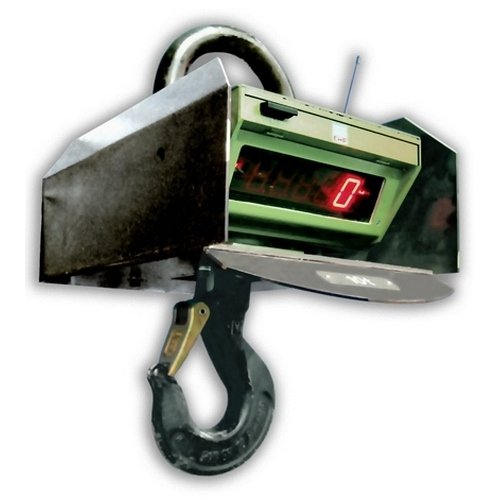

Crane scales EHP KGW 1

Crane scales EHP KGW are used for intensive operation in particularly difficult production conditions: foundries, smelting areas, scrap processing. The massive high-strength design of the scales and the IP65 moisture and dust protection class allow them to work all year round in open areas.

A special electronic system protects against electromagnetic interference and reduces the impact of mechanical parts of the balance on the results of measurements, including during the movement of the balance with the load. If additional protection is used in the form of a thermo-screen, EHP KGW crane scales can be operated over a ladle with liquid metal (up to +1400°C).

Features and functions of the scales

• The safety margin of metal structures during short-term overload is 520% ​​of the NIP.
• Increased strain gauge protection against mechanical and electromagnetic interference.
• LED display with figures 50 mm high.
• Remote control.
• The operating temperature range is -30°C to +90°C.
• Protection class against moisture and dust IP65.
• Single or double heat shield of high strength steel.
• Different variants of manufacturing scales — with any size of an earring and a hook, including an embodiment with two earrings and a two-horn hook.
• Up to 110 hours of operation on one battery charge in weighing mode.
• Indication of tare, gross weight and net.
• Autonol.
• Taring on the entire weighing range.
• Overload alarm.
• Indication of the discharge of the battery.
• Automatic power off.
