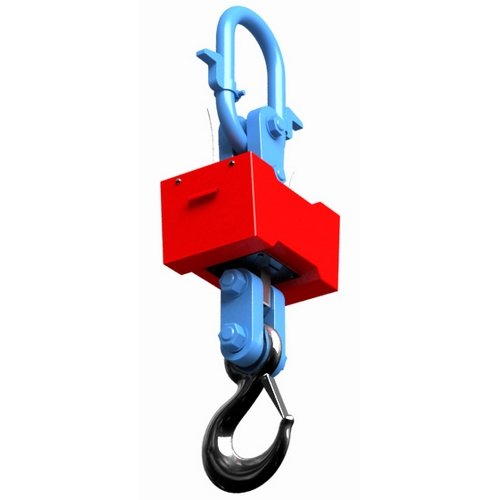

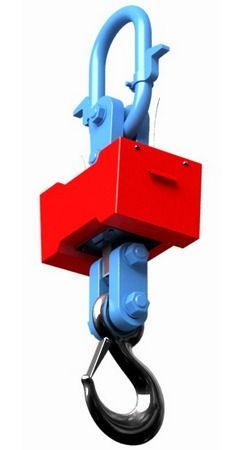

Scales crane Ermak VKpk 10000

Crane scales Ermak VKpk 10000 are used for weighing various loads transported on the hook of a crane or other lifting mechanism. When using suspended crane scales, the process of weighing and transporting the cargo is combined, which significantly affects the time of loading and unloading operations.

The scales for the crane Ermak VKpk 10000 are designed to work in adverse conditions. A rugged steel case without a display reliably protects the electronics from mechanical damage, moisture and dust, and the protection class is IP65. The scales are completed with one strain gauge sensor with a class of dust and moisture protection IP68. Guaranteed accuracy of reading in the operating temperature range from -25°C to +55°C.

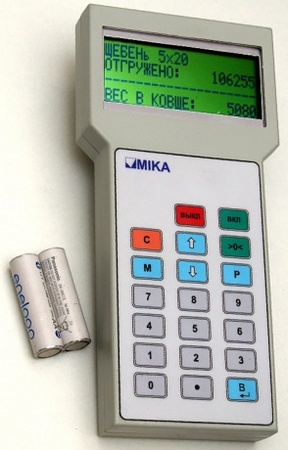

The balance is controlled remotely via the remote control via the radio channel from a distance of up to 200 meters. The graphical liquid crystal display on the panel shows the weighing results. The built-in RS232 interface provides communication with the computer for automation of the crane balance calculation. As an option, the remote control can be equipped with a protective case, belt and carrying case for carrying on the shoulder.

The scales operate autonomously from the battery, one charge of which lasts for 48 hours of operation. An additional battery is supplied, which will ensure uninterrupted operation of the balance. The status of the battery charge is monitored by the indicator on the remote controller’s display.

Features and functions

• Radio control.
• Taring.
• Sampling of tare weight.
• Switch to standby when there is no load.
• Indication of overload.
• Indication of overheating.
• Indication of battery discharge.
• Illumination of the display of the control panel.
• Replacement battery included.
• Permissible overload without loss of metrological characteristics — 125% of NIP.
• Permissible overload without destruction is 250% of the NIP.
• Protection class of the load cell is IP68.
• The protection class of the body of the scales is IP65.
• The operating temperature range is -25°C to +55°C.

The price of the scale is indicative. Specify the exact price from the manager of the company by phone: +38 067 565-93-41.
