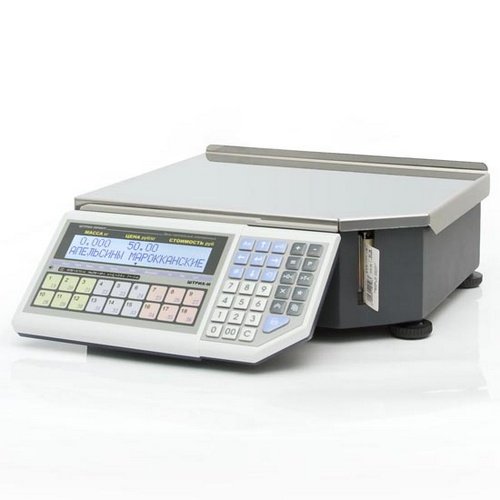

Scales printing labels Shtrih-Print F1 4.5

The filling scales Shtrih-Print F1 4.5 are intended for weighing, packing and labeling of products by thermo-labels in commercial and industrial enterprises.

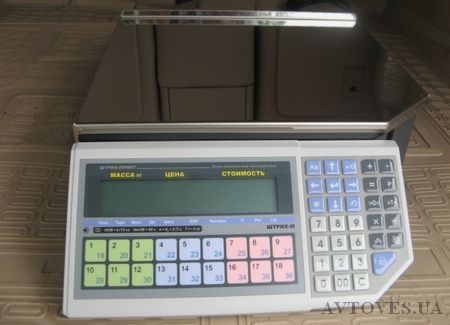

Weighing platform of scales Shtrih-Print F1 is 350x310 mm in size and made of high-quality food stainless steel. A bright two-line display with a liquid crystal display is placed on the front of the balance. Under the display is a comfortable keyboard of 50 keys, which is divided into two fields: 32 functional and numeric keys with a tactile effect and 18 shortcut keys for selecting 36 products.

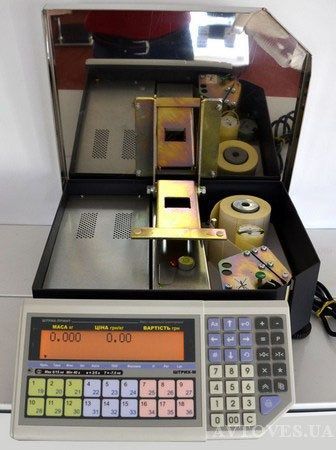

The built-in printer prints thermo labels with information about a weight or piece of goods, with text, images, a linear bar code, and up to 99 copies of the last printed label and reports. The print speed is 100 mm per second. Two interfaces RS232 and Ethernet provide communication with other devices.

Features and functions of the scales

• The amount of memory is 22000 items.
• Two-line LCD display for 2 lines of 22 characters (weight, price, cost, product name, information on the selected mode and the state of the balance).
• Keyboard — 50 keys (32 function keys and numeric keys and 18 shortcut keys).
• Convenient programming interface PLU with visual navigation.
• Adjustable parameters of the scale in the form of a menu with a hierarchical structure.
• Built-in and custom label formats.
• Printing of graphic images and one-dimensional bar code.
• They are equipped with powerful software for working with a computer.

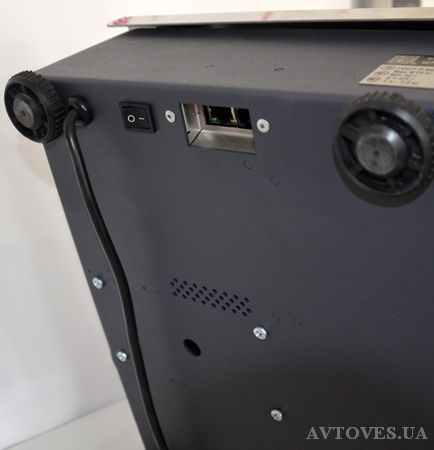

• The interfaces are RS232 and Ethernet.
• Controlling weights from the computer.
• Managing broadcast commands over a network.
• The ability to connect a barcode scanner through the RS-232 port.
• The print speed is 100 mm per second.
• The width of the print is 54 mm.
• The width of the thermal label roll is 58 mm.
• The maximum diameter of the roll is 120 mm.
