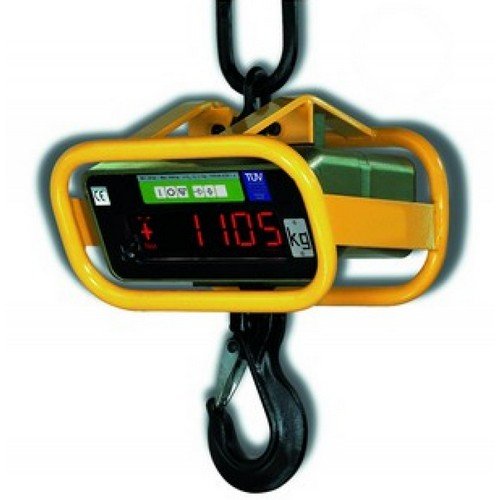

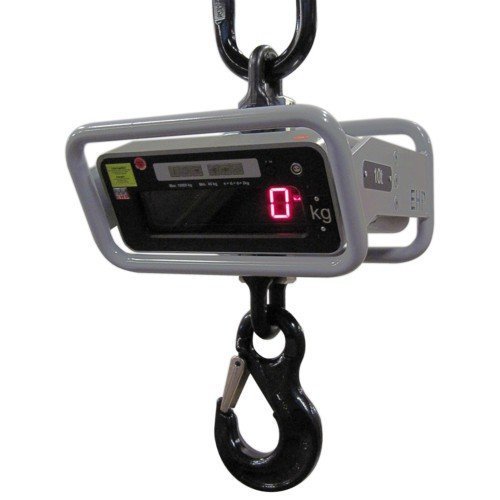

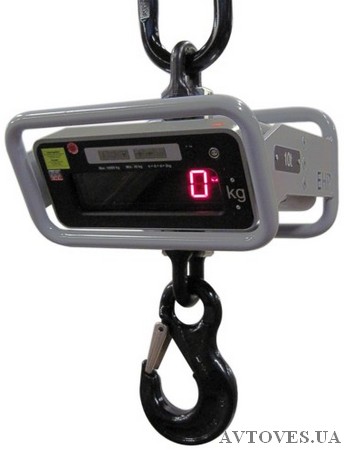

Crane scales EHP LK 1

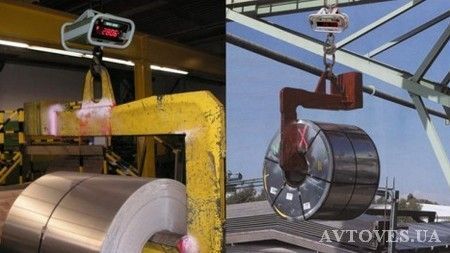

EHP LK 1 — high-strength crane scales for weighing a variety of goods with a total mass of up to 1 tonne during their unloading and loading by crane.

 The scales are equipped with a sealed impact-resistant housing with a class of protection against moisture and dust IP65. This design allows them to operate in dusty and humid conditions. In the design of the scales there are no movable mechanical parts moving during the weighing process, which ensures their high reliability during a long service life. A bright LED display with a height of 50 mm allows easy reading of weighing results at a distance of 50 m.

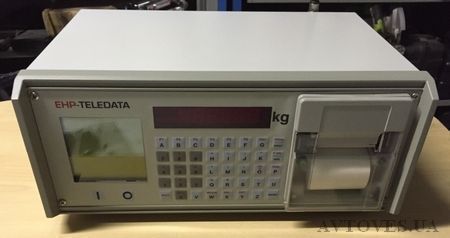

The crane scales EHP LK are equipped with a radio modem and allow the weighing information to be transmitted to a receiving device that is connected to a computer and is located at a distance of up to 500 m from the balance. As an option, you can connect a transceiver with a receipt of EHP Teledata checks (the receiving radius is up to 500 meters).

Features and functions of the scales

• High-strength metal frame.
• Stability of metal structures 500% of NIP.
• LED display with a symbol height of 50 mm.
• Remote control.Up to 110 hours of operation on one battery charge in weighing mode.
• Operating temperature range — from -20 °С to +90°С.
• Degree of protection against moisture and dust IP65.
• Different variants of manufacturing scales — with any size of an earring and a hook, including an embodiment with two earrings and a two-horn hook.
• Indication of tare, gross weight and net.
• Autonol.
• Taring in the entire weighing range.
• Overload alarm.
• Indication of the discharge of the battery.
• Automatic shutdown.
• The price is indicated for scales of 1 t capacity.
