Crane scales EHP LD-0,5

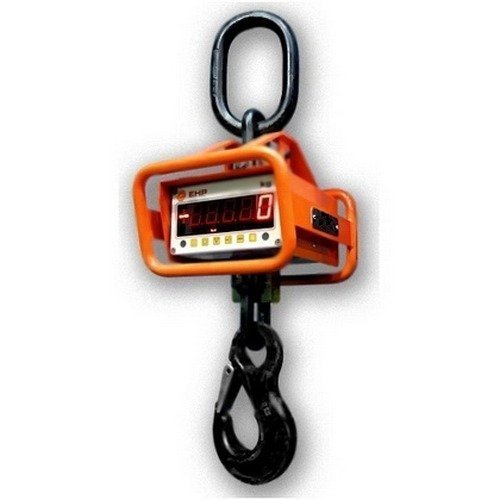

Crane scales EHP LD-0.5

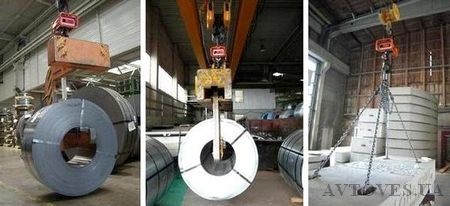

The EHP LD series is a reliable crane electronic scales designed for high-precision determination of the mass of various loads during loading and unloading by crane at metallurgical, chemical, processing, machine-building enterprises.

 The crane scales of the LD series have a lightweight, rugged construction, are capable of withstanding a peak dynamic load of 500% of the NIP. Protection class from moisture and dust IP65 allows to operate scales in the street in difficult weather conditions year-round. A bright LED display with figures of 42 mm high ensures easy reading of weighing results at distances up to 40 meters. Control panel with infrared port provides control of scales and weighing process.

Features and functions of the scales

• The increased margin of mechanical strength is 150% of the NIP at static load, 500% of the NIP at peak dynamic load.
• Display on LEDs with figures 42 mm high.

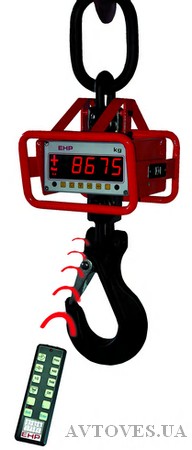

• Remote control.
• The operating temperature range is -30°C to +90°C.
• Protection class against moisture and dust IP65.
• Different versions of manufacturing weights at the request of the customer — different options for earrings, hooks, rings.
• Up to 80 hours of operation from one battery charge in weighing mode.
• Indication of tare, gross weight and net.
• Autonol.
• Taring on the entire weighing range.
• Overload alarm.
• Indication of the discharge of the battery.
• Automatic power off.
