Crane scales VK ZEVS III RPC

Crane scales VK ZEVS III RPC are used to determine the mass of different loads in the process of loading or unloading a crane. They are used in open areas of enterprises and where it is difficult or impossible to consider the information on the balance display.

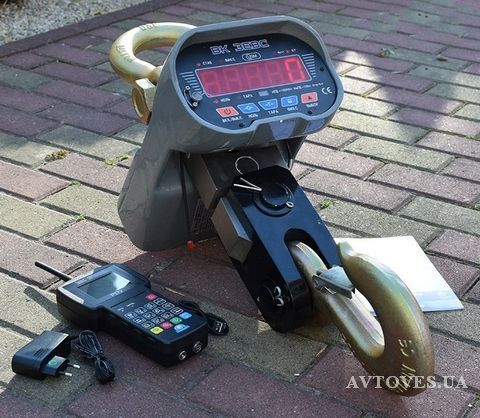

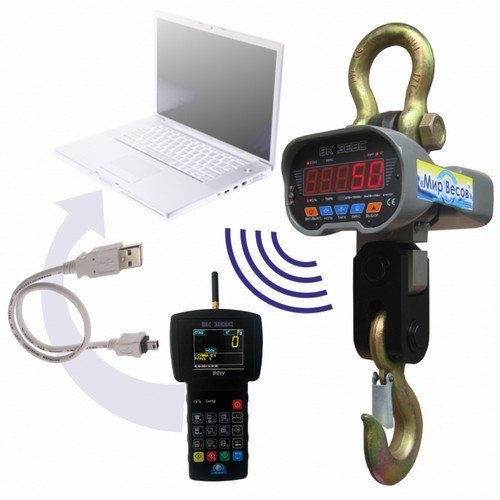

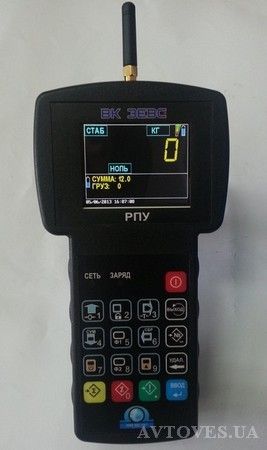

 The scales of VK ZEUS III RPC of the radio control unit are equipped with a radio channel control panel (RPC). The remote control is presented in the form of a mobile stand-alone terminal, which provides control of the balance. A 2.8-inch color liquid crystal display displays the weighing results. If necessary, the weight summation results can be saved to the built-in memory card. A USB 2.0 port allows you to connect the remote control to a computer. With the help of the control unit it is possible to simultaneously control a group of weights VK ZEVS (up to 16 pieces) in one range.

Features and functions of the scales

• The body of the scales is made of high-strength aluminum alloy.
• Hook with automatic latch.
• The class of protection of scales from dust and moisture is IP65.
• Protection class of the HVAC from dust and moisture — IP54.
• The power of the scales is from the built-in rechargeable battery (working time is about 80 hours).
• Power supply of the radio control unit — from the built-in Li-Pol 4000 mAh battery.
• The display of the scales is LED, five digits, character height is 38 mm.
• The display of the PDU is a graphic liquid crystal of 2.8 inches.
• The range of the radio channel is up to 250 meters.
• Gross or net weight indication.
• Weight averaging (HOLD function).
• Accumulation of weight (summation of results of several weighings).
• Taring.
• Fixing the balance after lifting the load.
• Persistence of peak loads.
• Preservation of summation results on the built-in memory (up to 20 million measurements).
• Displays the real time clock.

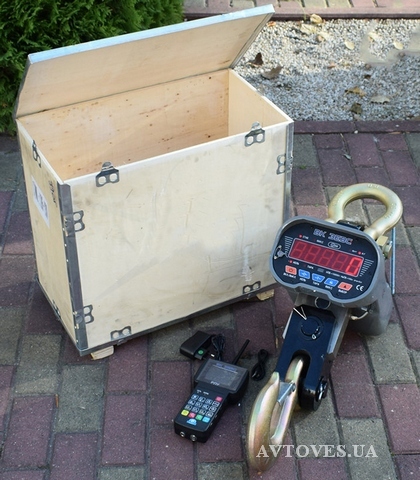

Scales are packed safely for transportation.
